SmartSource® Compact Vertical Water Source Heat Pumps

Big features. Small design. Perfect fit.

SmartSource Compact Fits

Building space is at a premium. So, we took our smallest SmartSource vertical footprint and made it 48% smaller to fit into tight spaces. At a mere 19 x 19 x 24 inches, Compact fits where others don’t. But smaller doesn’t necessarily mean less...

Big Features. Small Design.
Perfect Fit.

Specifying engineers, contractors, and facility managers will appreciate the high-performance features and solutions we’ve engineered into these compact units that are typically only found in larger WSHPs, providing excellent operation in new or replacement applications.

Less Is More

Manufactured in our state-of-the-art, lean process facility, Compact affords you a low cost, small footprint WSHP design that not only frees up valuable space, but also lowers your installation expenses and energy bills.

Specifications

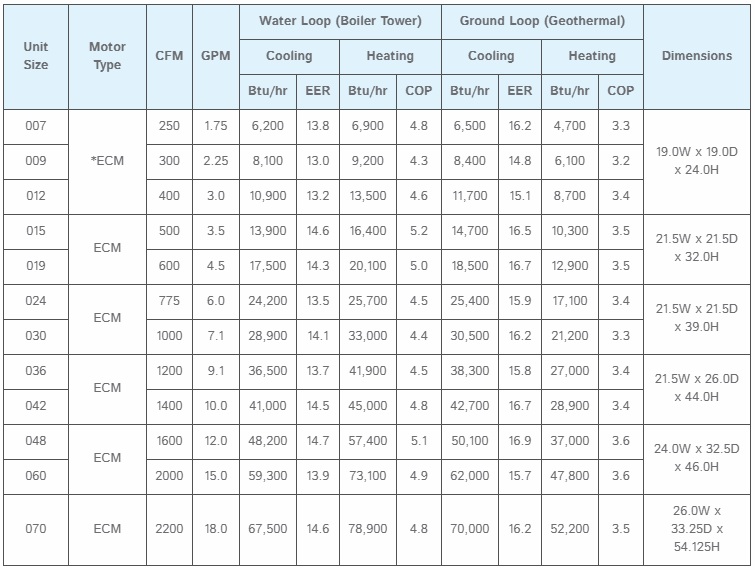

AHRI performance data – Compact model GCV with EC motor

Unit Size	Motor Type	CFM	GPM	Water Loop (Boiler Tower)				Ground Loop (Geothermal)				Dimensions
				Cooling		Heating		Cooling		Heating
				Btu/hr	EER	Btu/hr	COP	Btu/hr	EER	Btu/hr	COP
007	*ECM	250	1.75	6,200	13.8	6,900	4.8	6,500	16.2	4,700	3.3	19.0W x 19.0D x 24.0H
009		300	2.25	8,100	13.0	9,200	4.3	8,400	14.8	6,100	3.2
012		400	3.0	10,900	13.2	13,500	4.6	11,700	15.1	8,700	3.4
015	ECM	500	3.5	13,900	14.6	16,400	5.2	14,700	16.5	10,300	3.5	21.5W x 21.5D x 32.0H
019	ECM	600	4.5	17,500	14.3	20,100	5.0	18,500	16.7	12,900	3.5	21.5W x 21.5D x 32.0H
024	ECM	775	6.0	24,200	13.5	25,700	4.5	25,400	15.9	17,100	3.4	21.5W x 21.5D x 39.0H
030	ECM	1000	7.1	28,900	14.1	33,000	4.4	30,500	16.2	21,200	3.3	21.5W x 21.5D x 39.0H
036	ECM	1200	9.1	36,500	13.7	41,900	4.5	38,300	15.8	27,000	3.4	21.5W x 26.0D x 44.0H
042	ECM	1400	10.0	41,000	14.5	45,000	4.8	42,700	16.7	28,900	3.4	21.5W x 26.0D x 44.0H
048	ECM	1600	12.0	48,200	14.7	57,400	5.1	50,100	16.9	37,000	3.6	24.0W x 32.5D x 46.0H
060	ECM	2000	15.0	59,300	13.9	73,100	4.9	62,000	15.7	47,800	3.6	24.0W x 32.5D x 46.0H
070	ECM	2200	18.0	67,500	14.6	78,900	4.8	70,000	16.2	52,200	3.5	26.0W x 33.25D x 54.125H

Water loop test conditions:

Cooling capacity is based on 80.6°F db, 66.2°F wb (27/19°C) EAT and 86°F (30°C) EWT
Heating capacity is based on 68°F db, 59.0°F wb (20/15°C) EAT and 68°F (20°C) EWT

Ground loop test conditions:

Cooling capacity is based on 80.6°F db, 66.2°F wb (27/19°C) EAT and 77°F (25°C) EWT.
Heating capacity is based on 68°F db, 59.0°F wb (20/15°C) EAT and 32°F (0°C) EWT.
All ratings based on 208V operation.

*Constant torque EC fan motor only, all other sizes are constant torque or constant CFM type.
